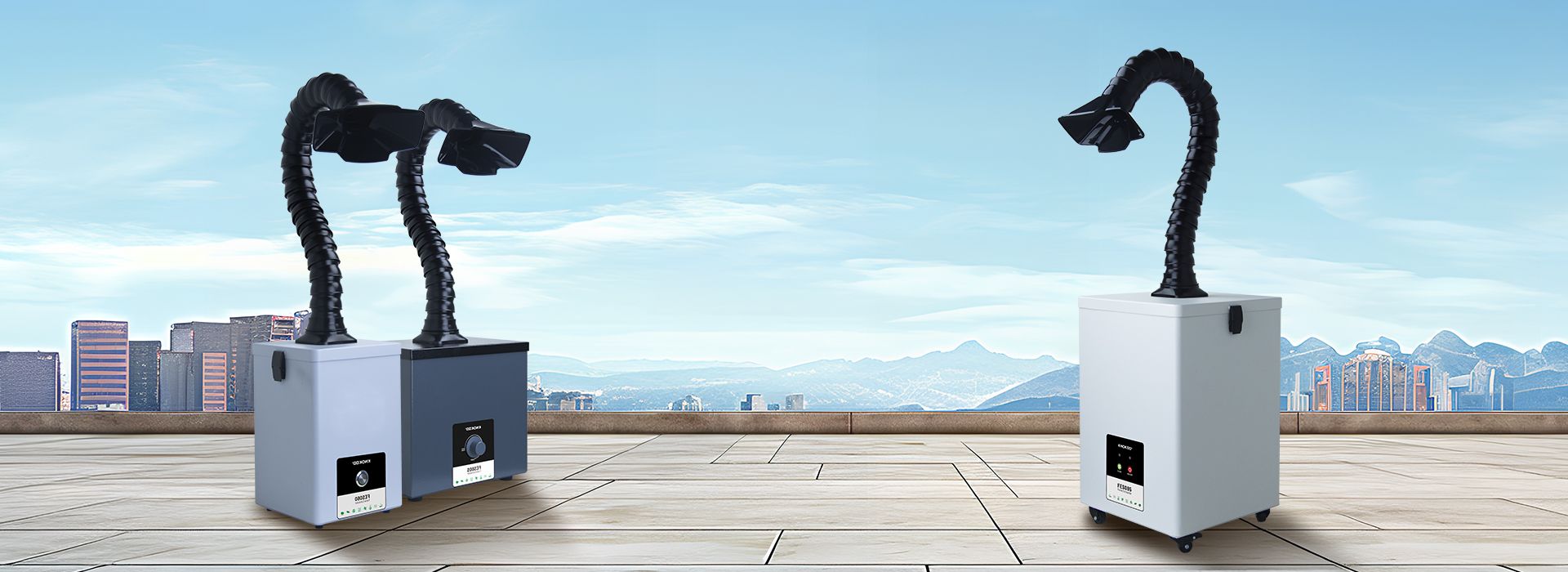

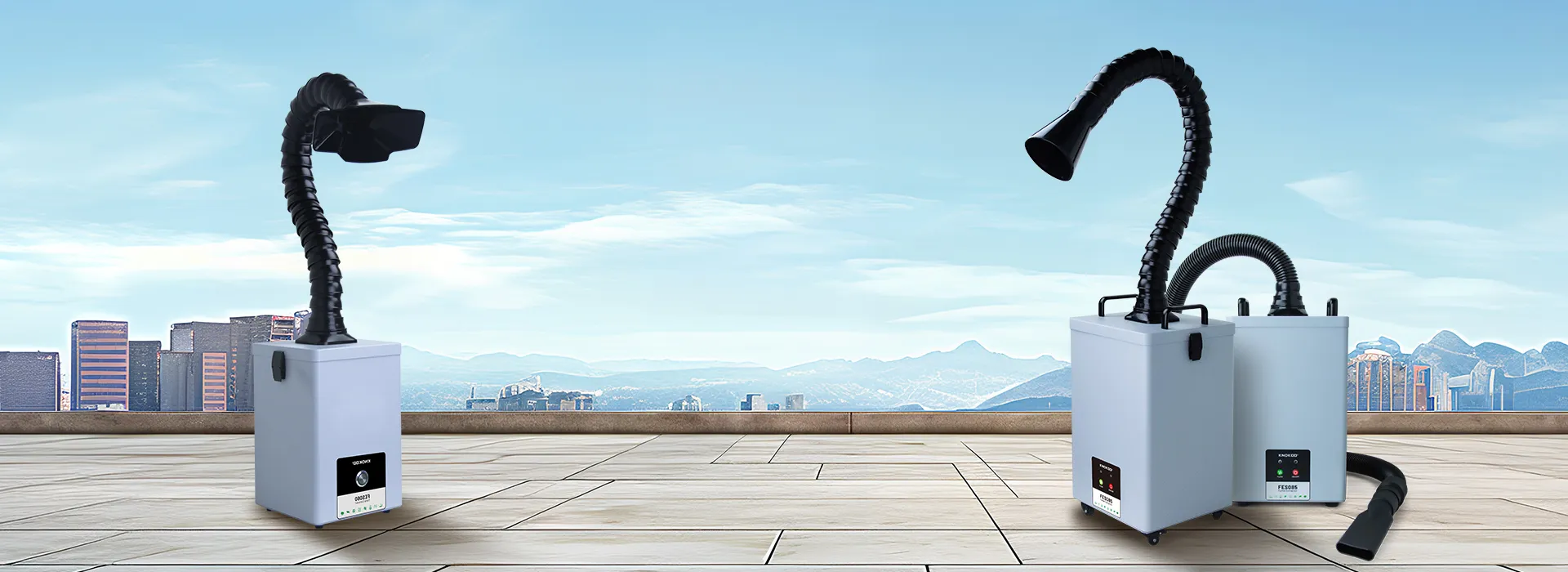

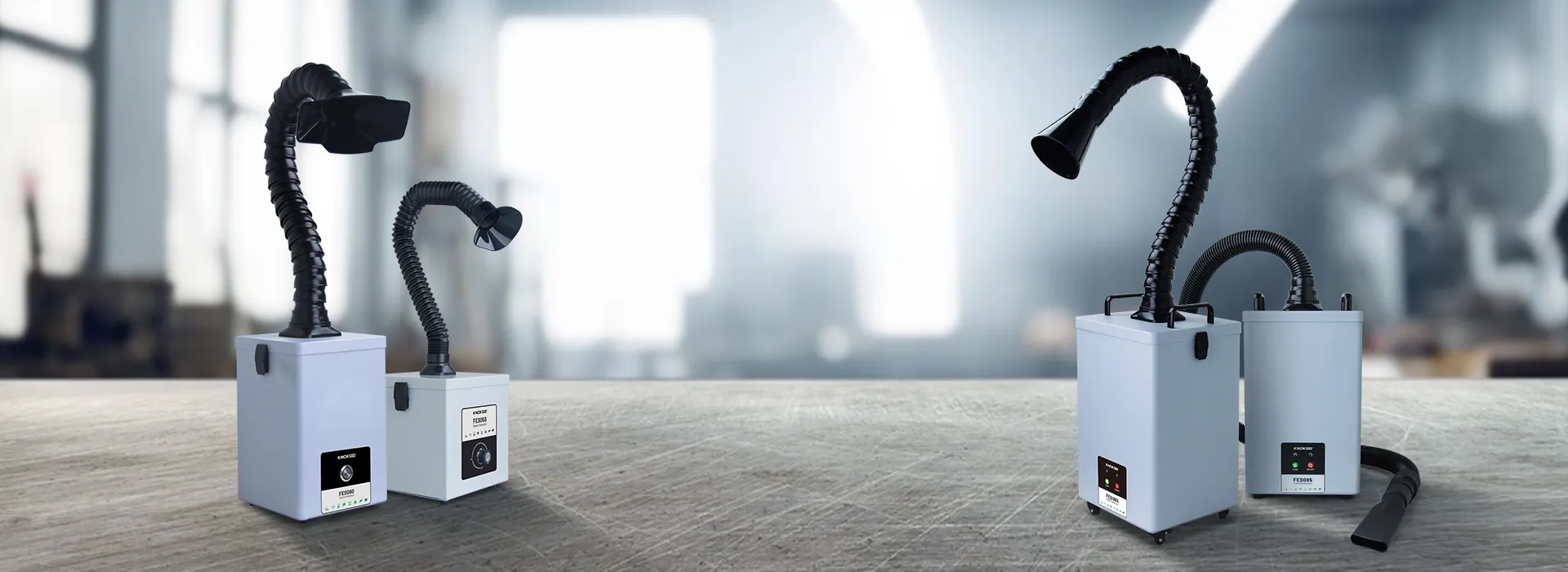

FES050 / FES060 / FES085

DESKTOP FUME EXTRACTOR
FOR SOLDERING

Compact Design, Powerful Smoke Filtration

FES 050
DOUBLE LEVEL FILTRATION

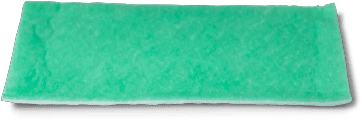

1Pre-Filter
Filter dust, debris and other large particles(PM60)

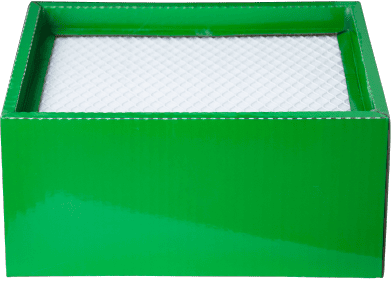

2HEPA Filter
Filter dust, asbestos and other fine particles and Adsorption of tar and other substances(≥0.3μm)

FES 060
DOUBLE LEVEL FILTRATION
1Pre-Filter
Filter dust, debris and other large particles(PM60)

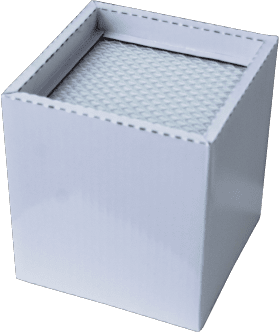

2HEPA and activated
carbon 2-in-1 filter
Filter dust, asbestos and other fine particles and Adsorption of tar and other substances(≥0.3μm)

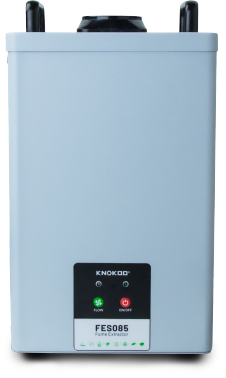

FES 085
New type of filter barrel
Filter Cartridge
The filter element is made of PTFE coated materi-al, a new type of smoke and dust capture filter element. Compared with ordinary filter cartridges, it has better wear resistance and higher filtration accuracy. It can provide higher filtration speed than traditional filter cartridges, and the dust removal effect can reach 99.9%. The filter cartridge can be cleaned and reused repeatedly (up to 6-8 months depending on the usage scenario)

The sound of running like the soft song of a mountain bird

STANDARD ACCESSORIES

FES050

Machine*1

Pre-Filter*4
HEPA Filter*1

0.75m Articulated Duct *1
Round Hood *1
Power Cord *1

FES060

Machine*1

Pre-Filter*4
HEPA and activated carbon 2-in-1 filter*1

0.75m Articulated Duct*1
Square Hood*1
Power Cord *1

FES085

Machine*1

Filter Cartridge *1
Swivel Casters*4
(optional)
Power Cord *1

1.2m Articulated Duct *1 (optional)
1.3m Articulated Duct + flat head *1 (optional)
Round Or Square Hood *1

COMPARISON TABLE

RATED VOLTAGE
RATED POWER
AIR INLET SIZE
SYSTEM AIRFLOW
FILTER LAYERS
NOISE
ARM LENGTH
FILTRATION PERFORMANCE
OPERATING PANEL
MACHINE DIMENSIONS
NET WEIGHT
FES050
BUY
AC 110V/220V
50W
Φ40
130m³/h
2Layer
≤52dB
0.75m
>0.3μm 99.97%
Airflow Control Knob
185*185*200mm
≈3.1kg
FES060
BUY
AC 110V/220V
60W
Φ50
160m³/h
2Layer
≤52dB
0.75m
>0.3μm 99.97%
Touch Switch

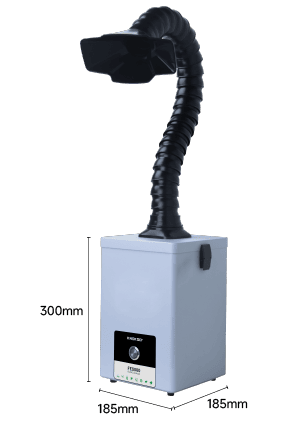

185*185*300mm
≈4.3kg
FES085
BUY
AC 110V/220V
85W
Φ50
200m³/h
1Layer
≤50dB
1.2m
>0.3μm 99.97%
Touch Switch
230*230*370mm
≈9.2kg

FES050,FES060,FES085
Choose the Right Fume Extractor for Your Welding Needs
Different welding applications generate different levels of smoke and fumes. Choose the model based on your work intensity, smoke generation, and extraction requirements.
Light‑Duty Welding | Lower Airflow‑FES050
Ideal for occasional soldering, light welding, and small workspace. A lower‑airflow model provides targeted fume capture while keeping the system compact and energy‑efficient.
Regular Welding | Medium Airflow‑FES060
Recommended for frequent welding and general workshop applications. The higher airflow provides stronger fume capture and is suitable for longer working sessions and a wider working area.
Heavy‑Duty Welding | Higher Airflow‑FES085
Designed for intensive welding, higher smoke generation, or larger workspace. The higher airflow provides greater extraction capacity for demanding applications and continuous operation.
Tip: For the best results, position the extraction hood or arm as close as practical to the fume source. Selecting the appropriate airflow for your welding workload helps maintain effective capture without using more extraction capacity than necessary.
