FES80 / FED80
Multiple Filtration Fume Extractor
Simple operation and wide range of applications

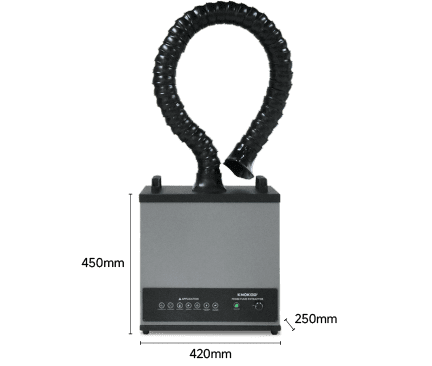

FES 80
POWER: 80W
SUCTION : 250m3/h

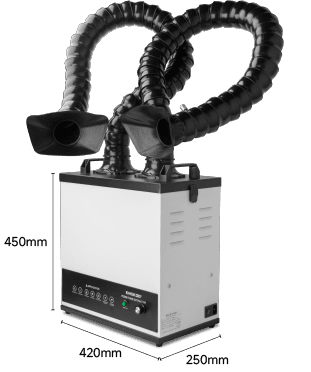

FED 80
POWER: 200W
SUCTION: 160m3/h × 2
THREE LEVEL FILTERING
11st Layer Pre-Filter Cotton
Pre-Filter Cotton Filtration PM60 and Dust
Replacement period in 10-60 days
22nd Layer Middle HEPA Filter
Middle HEPA Filter Filtration PM0.3
Replacement period in 5-8 months
3 3rd Layer Main Filter with Activated Carbon
Main Filter with Activated Carbon Filtration Adsorption of Harmful Gases and Smoke, Replacement period in 6-12 months
Low running noise, approximately equal to the sound of conversation
STANDARD ACCESSORIES
FES80
Machine*1
Primary Filter Cotton*4
Medium-effect Filter Layer*1
Main Filter Box*1
1.3m Universal Tube*1
Silicone nozzle*1
Power Line*1
FED80
Machine*1
Primary Filter Cotton*4
Medium-effect Filter Layer*1
Main Filter Box*1
1.3m Universal Tube*2
Silicone nozzle*2
Power Line*1
PRODUCT DETAILED PARAMETERS
Optional color
INPUT VOLTAGE
POWER
AIR INLET INTERFACE
SUCTION
FILTER LAYERS
NOISE
SMOKE TUBE LENGTH
FILTRATION EFFECT
DISPLAY MODE
SIZE
NET WEIGHT
FED80
BUYAC 110V/220V
200W
Φ75×2
160m3/h × 2
3 Layers
55-65dB
1.3m
>0.3μm 99.97%
Knob Indication
420*240*450mm
18kg
- FES80 and FED80
- Appearance
- •The fuselage integrated design, using metal frame structure, high quality cold rolled steel plate electrostatic spraying process, durable，simple, economical and practical.
- •Both sides are equipped with high-quality plastic handles, which are delicate, stable and reliable, and easy to handle.
- •The unique shape curve design of the air inlet flange is more suitable with the principle of fluid dynamics.
- •Install humanized stepless speed governor, which can adjust the air volume and suction size.
- •The product is small in size and does not need to be installed, which is conducive to clean and saving working space and easy to move.
- Fan
- •Using brushless DC motor, built-in controller form, performance and quality is more guaranteed.
- •Stable operation, low noise, high efficiency, low energy consumption, long working time,No regular maintenance is required, and the cost is lower.
- •The wind wheel adopts the vortex backward design, and the special alloy material can effectively prevent the wind wheel from being corroded.
- •The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably.
- •High air volume, large suction, higher filtration efficiency.
- Filter system
- •Three-fold filtration design,Filtering layer by layer to ensure that harmful gas is filtered out more efficiently,The filtering efficiency can reach 99.97 %.
- •Modular design, layers of protection, all three layers filters can be replaced separately, the service life of the filters is longer and the replacement cost is lower.
- •The unique internal sealing structure, coupled with special sealing materials, enables all harmful substances to pass through the filtration system, and the filtration efficiency is higher.
- •The built-in cycle active filtration method avoids the discharge of indoor cooling / heating air from the outdoor, and does not destroy the temperature and humidity environment of the operating range.
- Smoke collecting device
- •The machine is equipped with a universal smoking arm, which can be changed and adjustable ( the length can be customized according to customer's requirements ).
- •The end is equipped with a new type of smoke collection silicone nozzle, which has a unique shape and higher smoking efficiency.
- •Simple installation, easy to use, without additional pipeline needed.
